SuperJX Display Anniversary Edition

To celebrate the second birthday of the replacement SuperJX Display, an anniversary edition has been created that resides in firmware version 1.05 onwards.

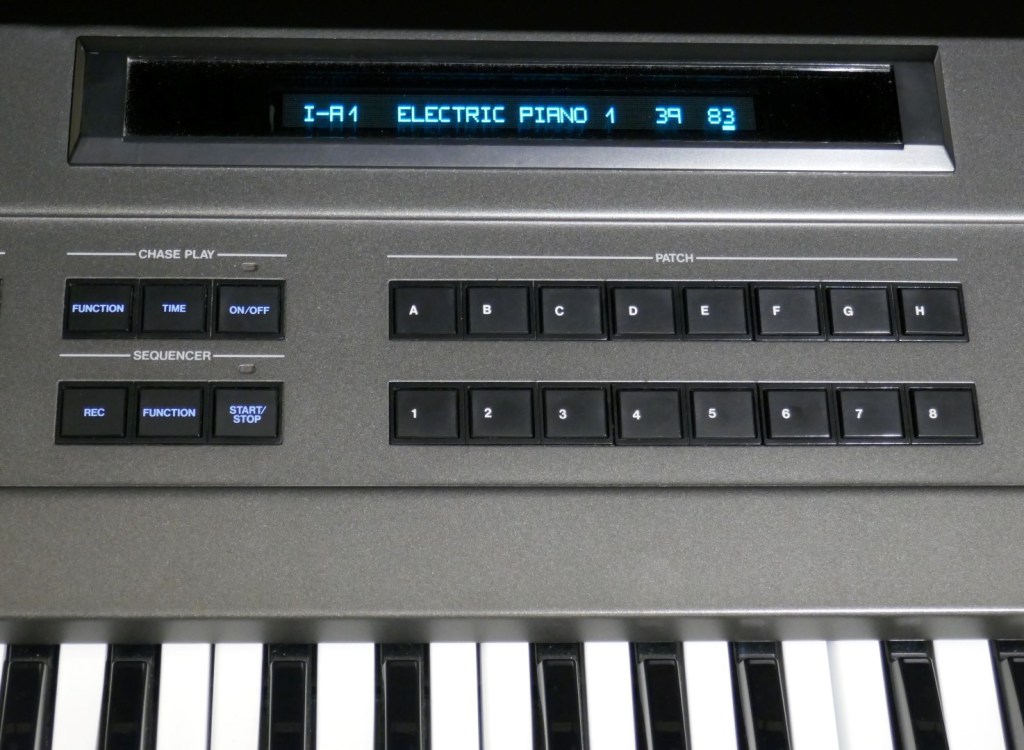

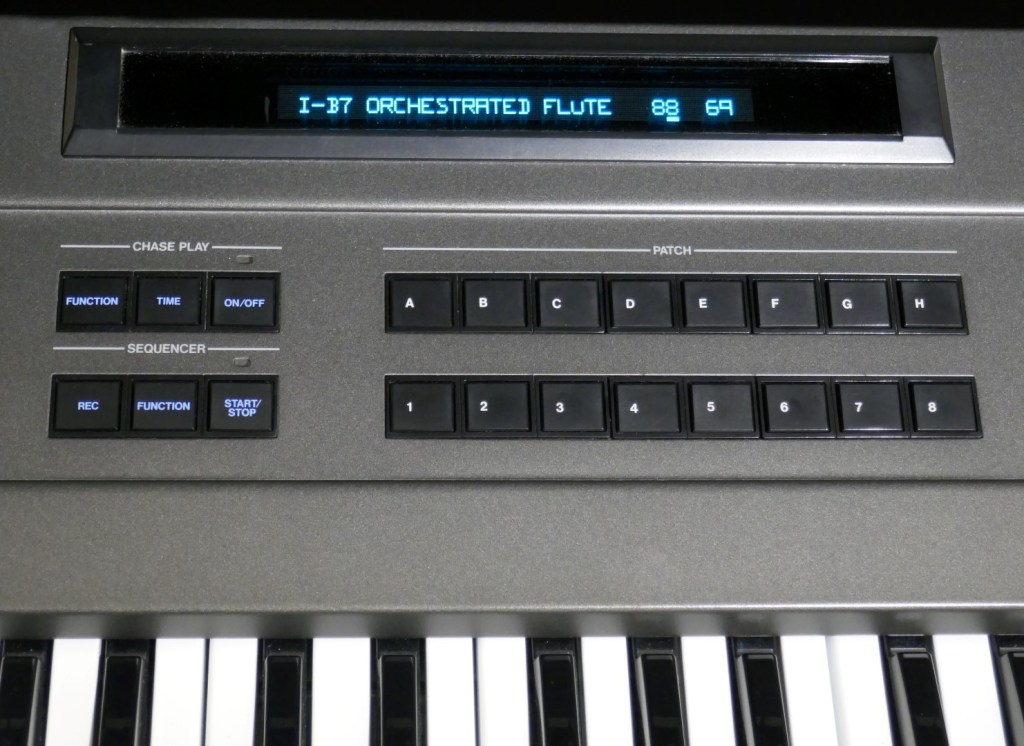

The firmware uses the graphics capabilities of the VFD module to emulate the original Roland 14 segment starburst display using vector graphics.

Starburst emulation is fully configurable, at will using a MIDI menu setting. It is great for when one is bored with the other two built in layouts.

This was done after a request was made for an original starburst VFD tube that cannot be made available without considerable tooling cost. It was a lot of fun programming and integrating with the firmware. Great if you get bored of the other layouts available in the old firmware.

If you already have a replacement VFD display, contact us for a system exclusive file to download the new firmware.

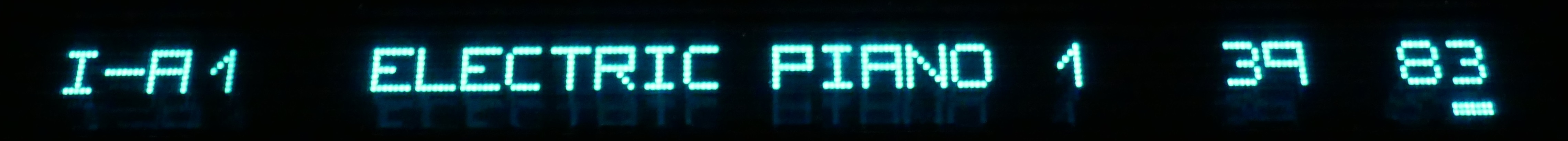

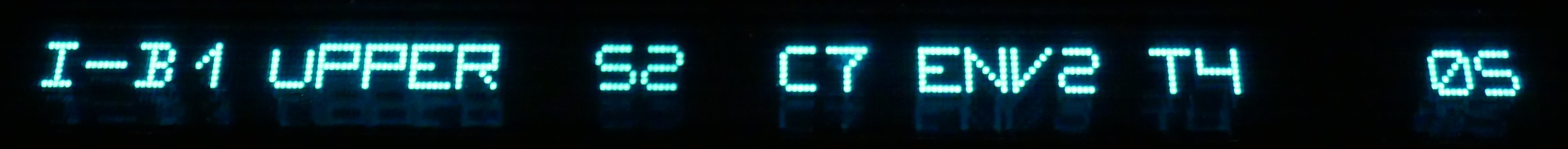

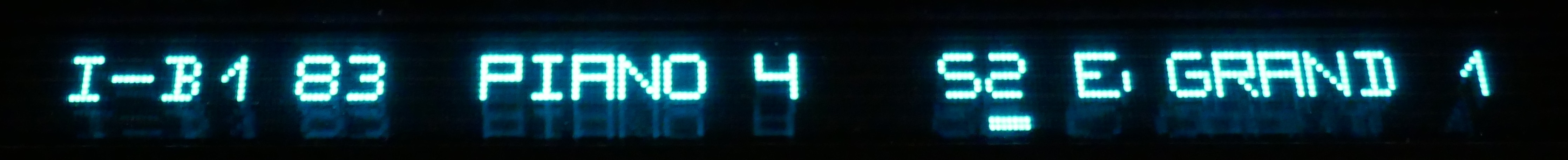

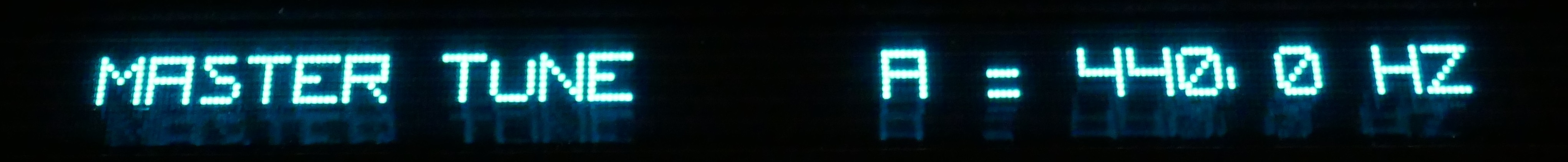

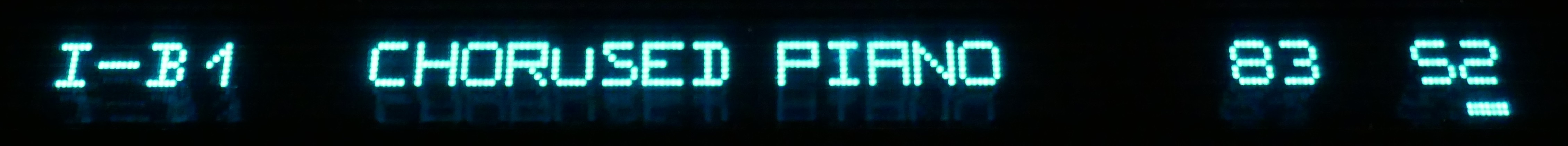

P1000671P1000669P1000670P1000672P1000668

How To Set Vector Mode

To enable or disable the Vector font in Roland Emulation Mode, do this:

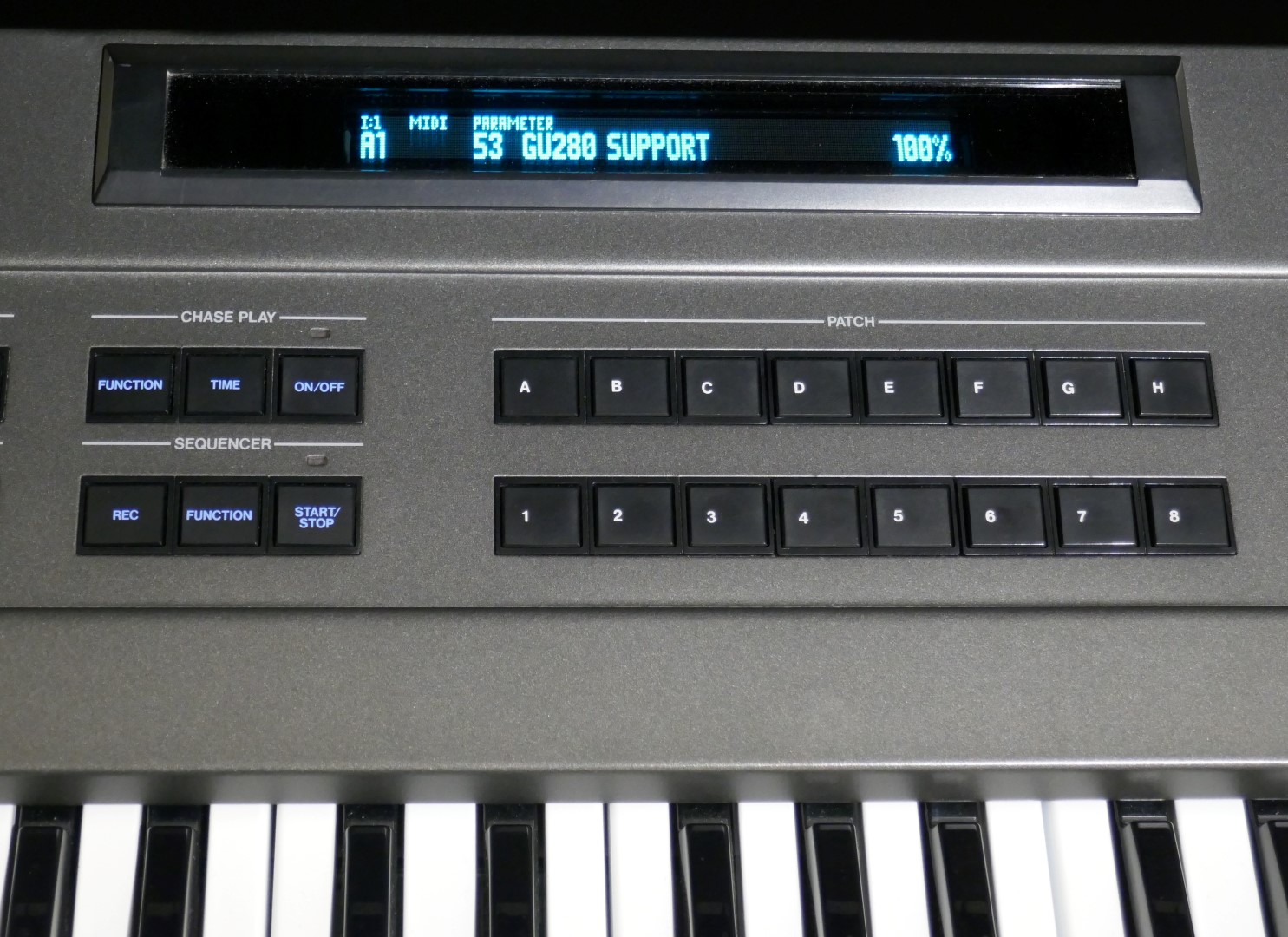

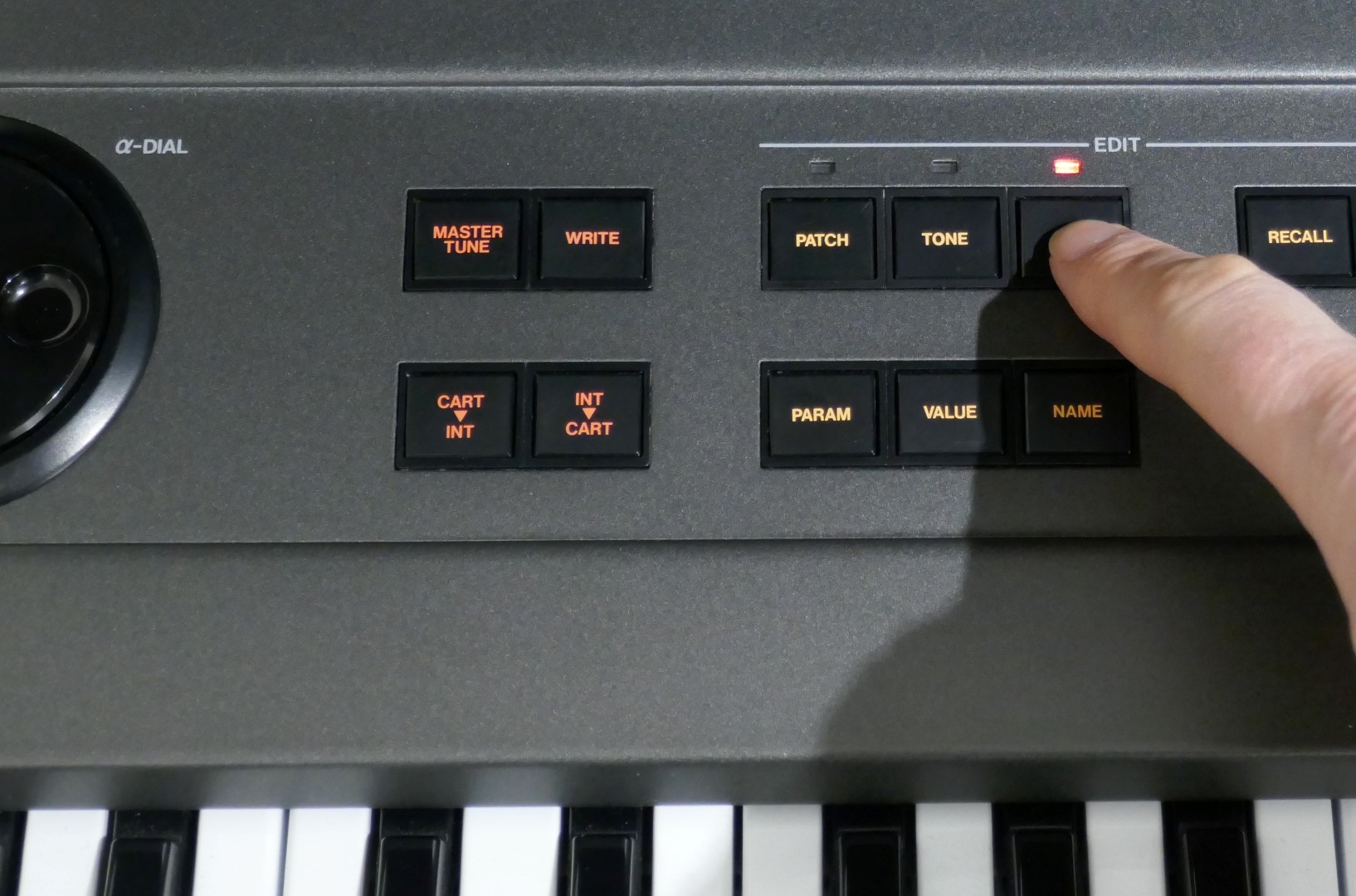

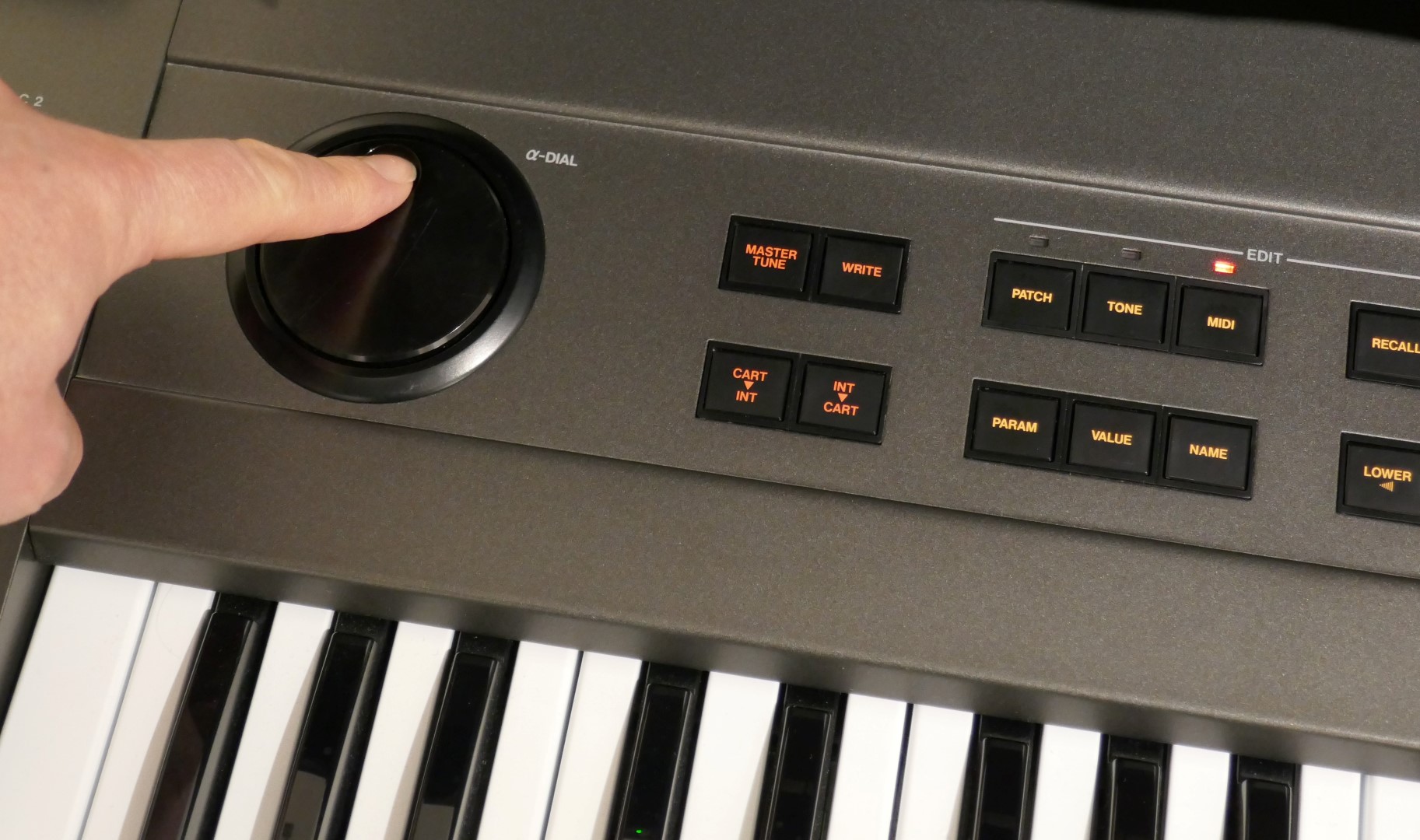

Press MIDI, PARAM then rotate dial clockwise until “GU280 SUPPORT” setting appears.

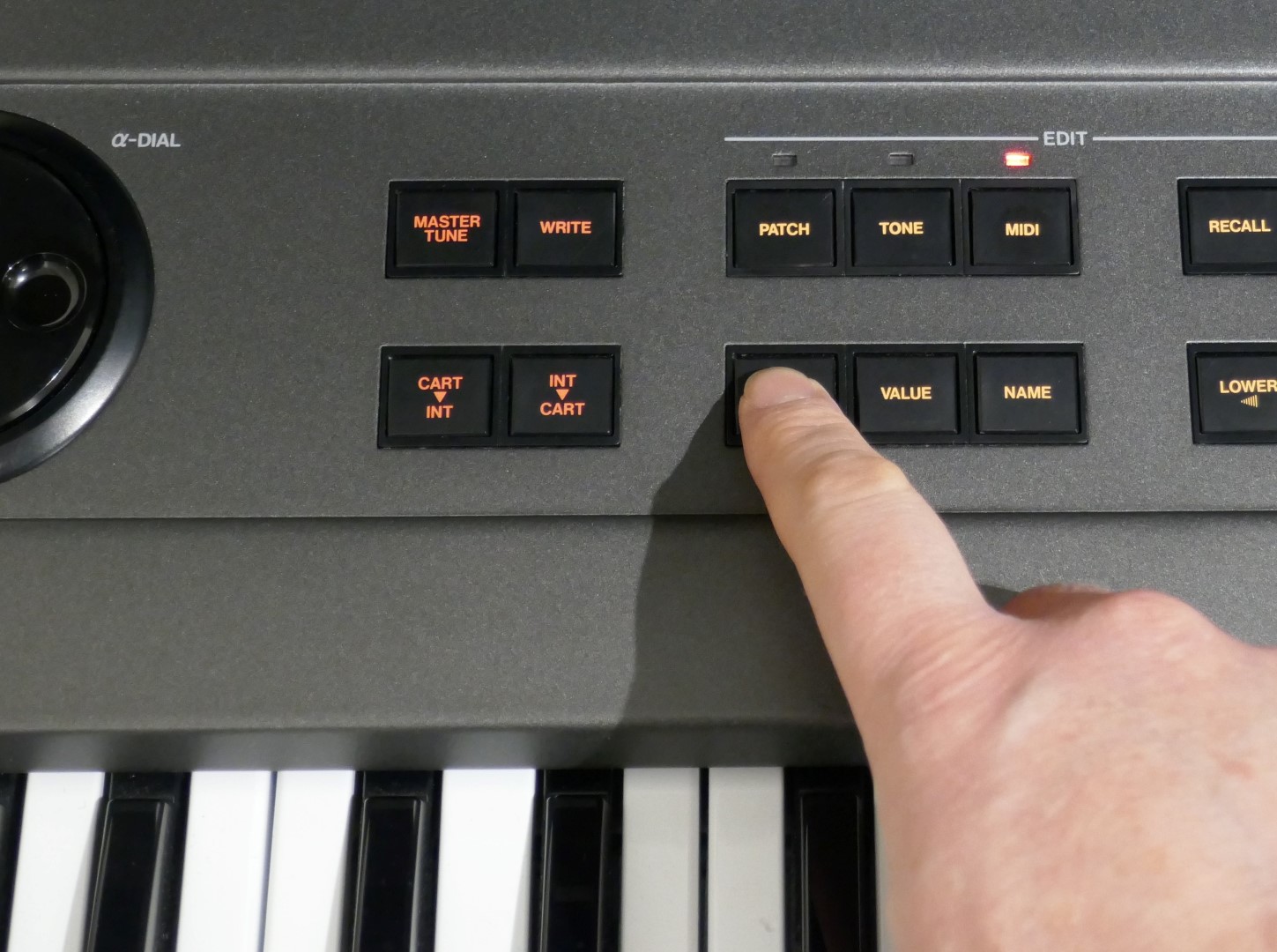

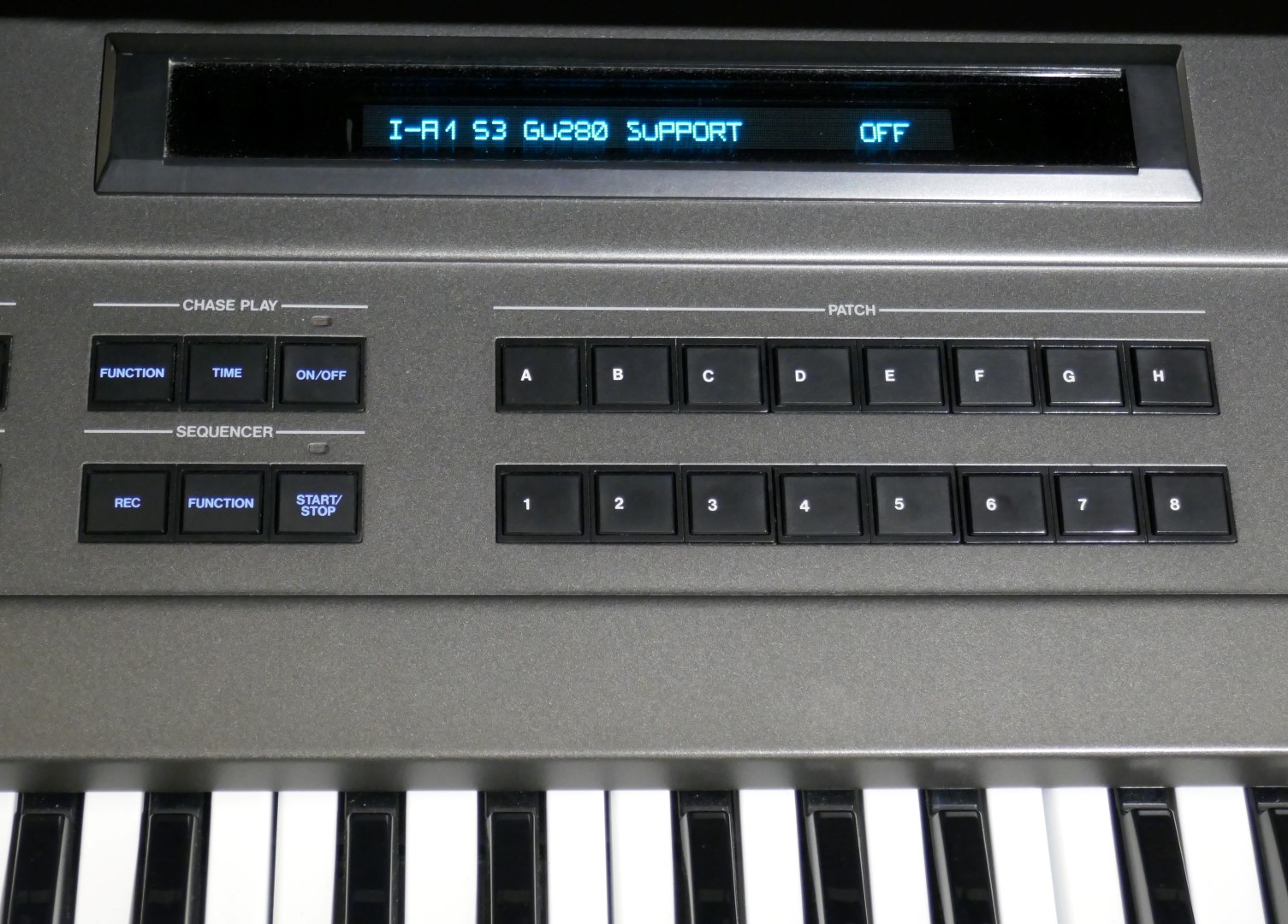

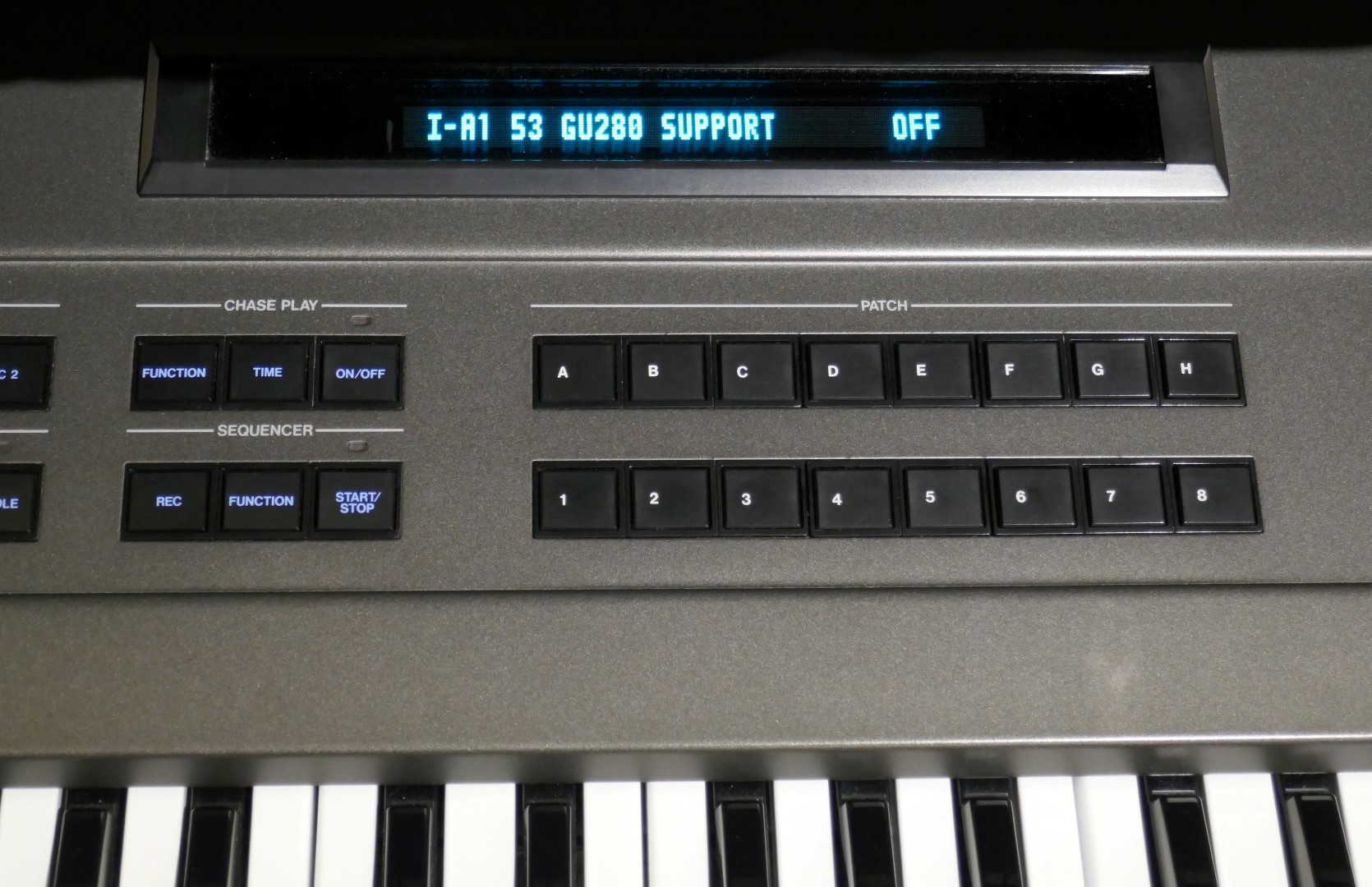

Press VALUE and rotate dial clockwise and anti-clockwise five times so that the display setting alternates between OFF and 100%. On the fifth time you enter OFF the display changes to Vector mode when setting returns to “OFF”, the Roland emulation mode.



Press WRITE to save “Roland Mode” and make sure that the instrument is not powered off for at least 30 seconds to allow the display to store the new mode. Now you can enjoy the 14 segment starburst emulation!





Development

The design was done initially using HD6303, GU280 and Firmware emulators on a Linux platform. Once tested, a version was developed using a test display connected to a PCB and debugging tool.

The font was perfected and checked for the best result possible using 16 bit words to hold data for each character. 14 bits were used to identify segments and two remaining bits were used to “blank out” corners to improve some of the characters.

Two data tables are used to hold information: Segment drawing data & character segment data. It resulted in very compact memory usage for a whole font and uses more CPU time (not that it matters in this case) due to the line drawing calculations.

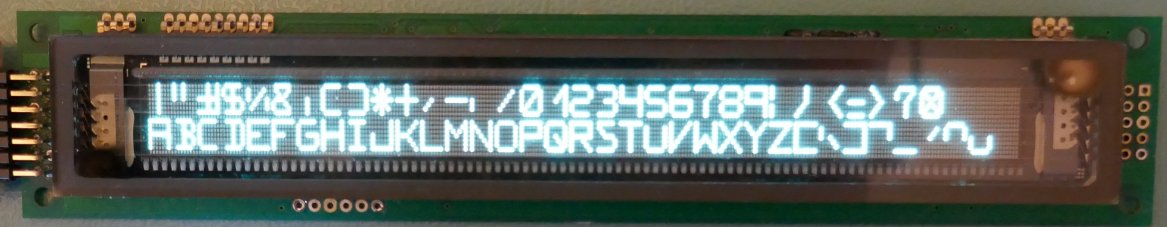

The full font on a test VFD is shown in the picture below:

VectorFont-1PixSpace

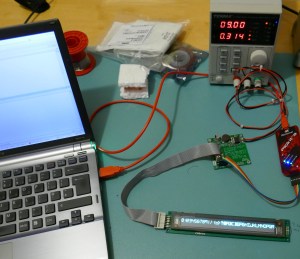

Development tools for the job!

0-Development



Copyright © 2017 Super Synth Projects, Guy Wilkinson.
