Maintenance page dedicated to getting you to the information you need quickly when your SuperJX stops working properly or is reported as being “dead”.
There are a huge number of pages showing how to maintain the SuperJX, please use the main menu to access the full content.
Power Supply Repair & Upgrade
Sort out the problems with the JX10 or MKS70 power supply, same techniques can be used on the JX8P and many other instruments.
This covers apacitor replacement, resistor upgrades, transistor change, dry joint repair and the components necessary to fix it all!
Transformer Tapping Change
Change your UK, Japanese, USA or European specification SuperJX into a different voltage supply using this guide. Contains important information about the earthing for the UK and change of input connector.
SuperJX Mains Input Configuration

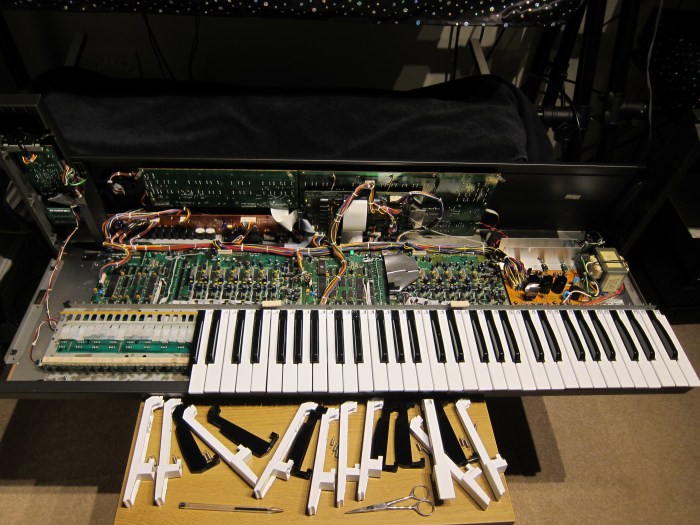

Keyboard Refurbishment
Two guides showing how to fully refurbish a JX10 keyboard assembly.
- Replacement contacts with parts from Roland that are from a modern instrument: JX10 Replacement Key Contacts
- Aftertouch restoration using graphite powder and IPA: JX10 Aftertouch Restoration

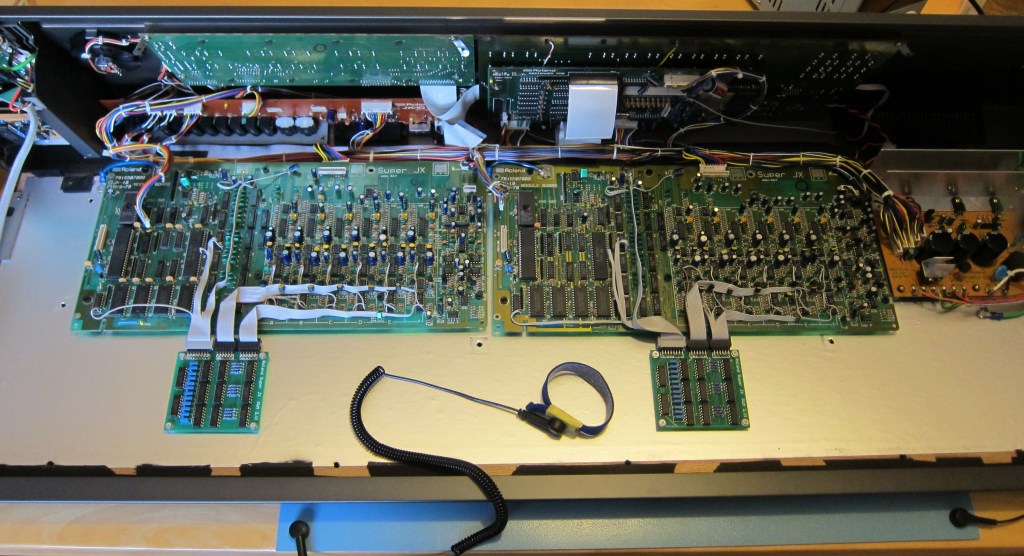

Removing MKS70 Main & Voice Boards
Teardown of the Roland MKS70 and how to take it apart carefully without damage to do repairs and upgrades. Essential guide for upgrading firmware without damaging your SuperJX Roland MKS70.
JX10 Encoder Replacement
A guide showing how to replace the JX10 encoder with a low cost but reliable modern one from Bourns. Note that this uses an encoder that has fewer pulses per revolution but still has satisfactory performance and you don’t need to try and hunt down a used 30 year old encoder that wont last. In principle, the MKS70 can take the same encoder but no detailed instructions have been trialled yet.
Roland SuperJX Encoder Replacement
MKS70 Replacement Switches
An easy step by step guide to replacing the switches on the Roland MKS70 in the most efficient way possible.
MKS70 Noise Reduction
A fabulous modification that routes internal wiring differently on the MKS70 to reduce noise considerably. A full explanation of why it works too!

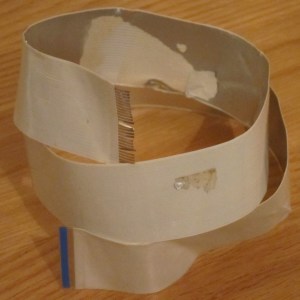

JX10 Cartridge Cable
The cartridge cable is in a vulnerable position on the JX10 and can fail if opening regularly or if it was manufactured with it trapped in the hinged part of the casing. this guide shows how a simple PCB and cable modification can put this right and allow the use of the Roland cartridges or the Vecoven 16 bank M1024C cartridge.
JX10 Replacement Cartridge Cable
JX10 Flat Cartridge Flat Cable

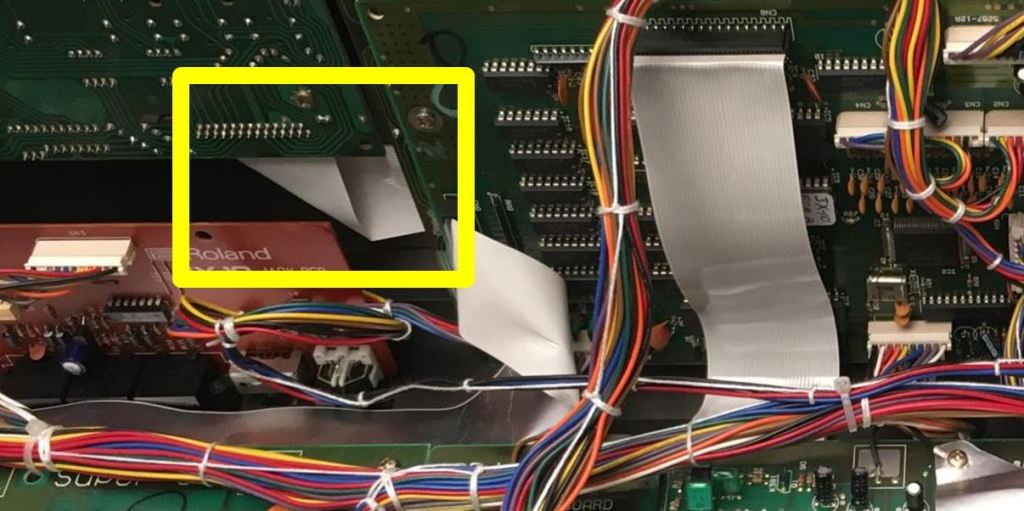

JX10 Display Board Flat Cables
Two pages showing how to replace the flat cables that connect to the Display Board:
- Display to Assigner Cable: JX10 Display Board Flat Cable Replacement
- Display to Switch Board Cable: JX10 Switch Board Flat Cable Replacement

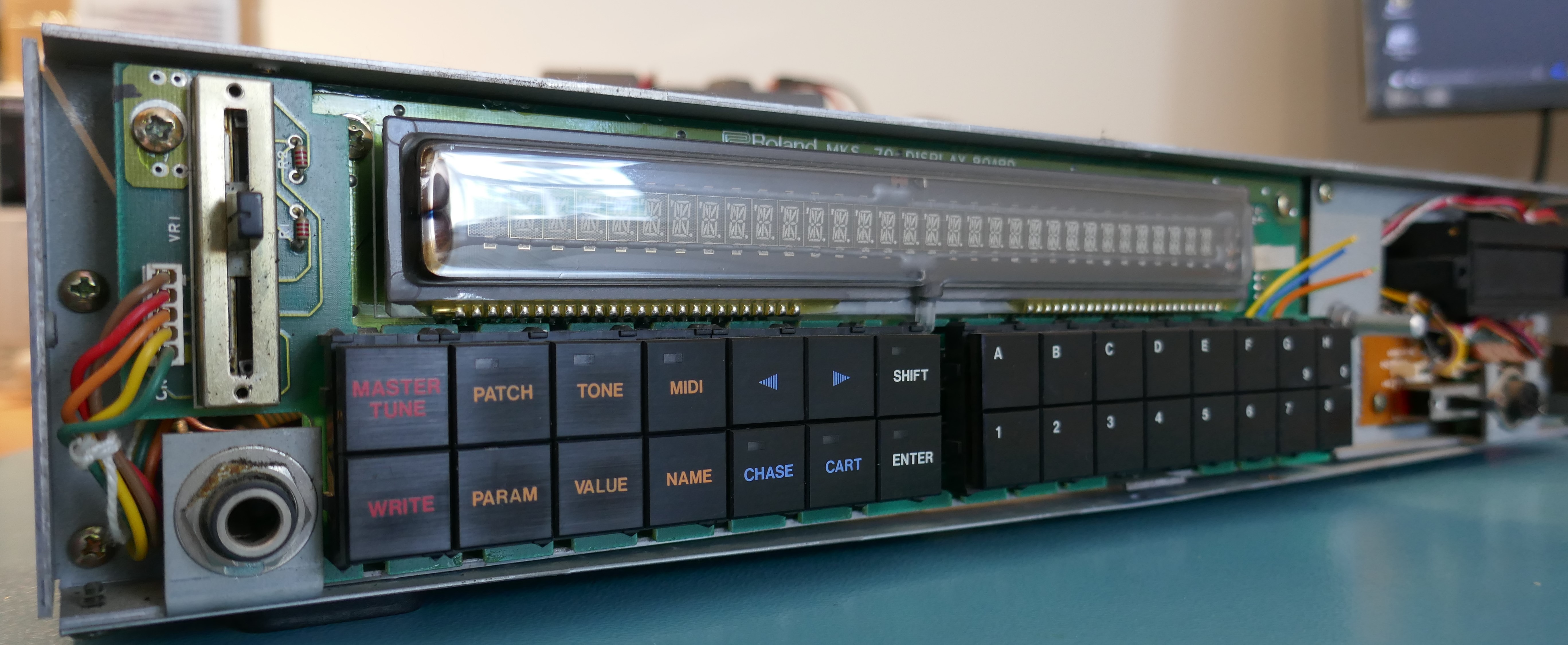

SuperJX Display Issues
A description showing the failure modes of the SuperJX Vacuum Fluorescent Display, also mostly applicable for other synths with ancient VFD modules.
Some descriptions present ideas of how issues can be fixed by skilled technicians and hobbyists.
Super JX Display Failure Modes

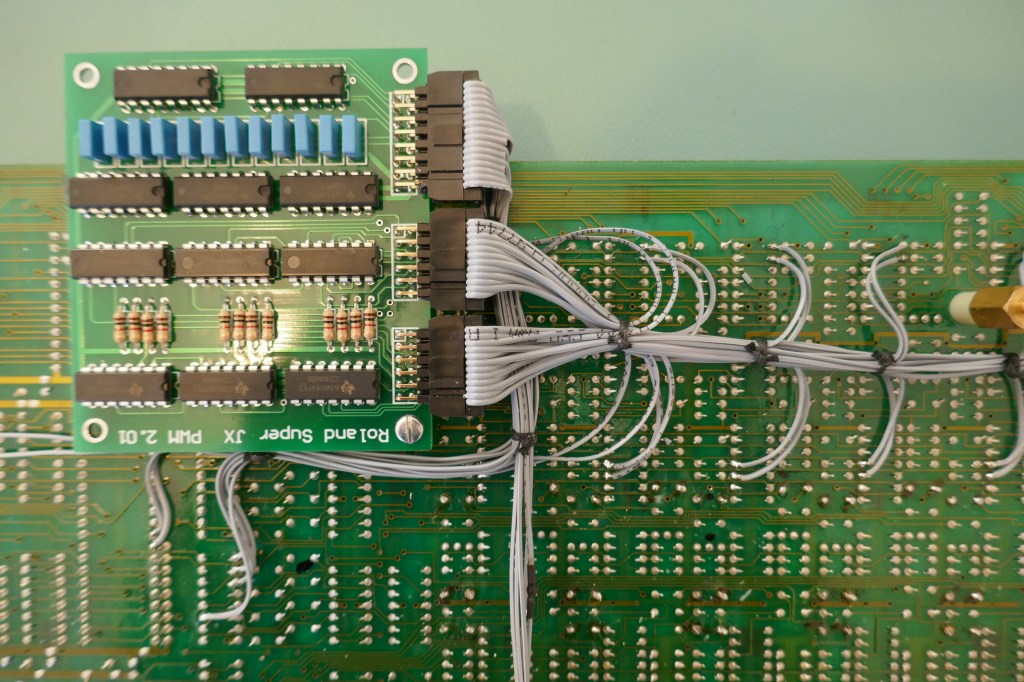

Vecoven Wired PWM Kit Fitting
An explanation of how to tackle the fitting of the Vecoven PWM kit to the JX10 or MKS70.
