Synth Display Upgrades

Some fabulous modifications to brighten your synthesizer using OLED modules. Some displays are available in distribution but we have access to all the solutions and normally keep stock. Many of them use the same set up as the JX10/MKS70 headline upgrade on this site.

More importantly, wherever you manage to source a compatible display module, this area shows how it is done along with any pitfalls. It also shows what is inside these fabulous instruments.

See rest of website for Roland SuperJX maintenance and display pages.

If you need a display fitting to an instrument or any other upgrade shown on this site, Plasma Music in UK offer this service.

Roland D50

Note that the OLED display illustrated in this guide is also compatible with the Roland D550.

D50-OLED-Tilt

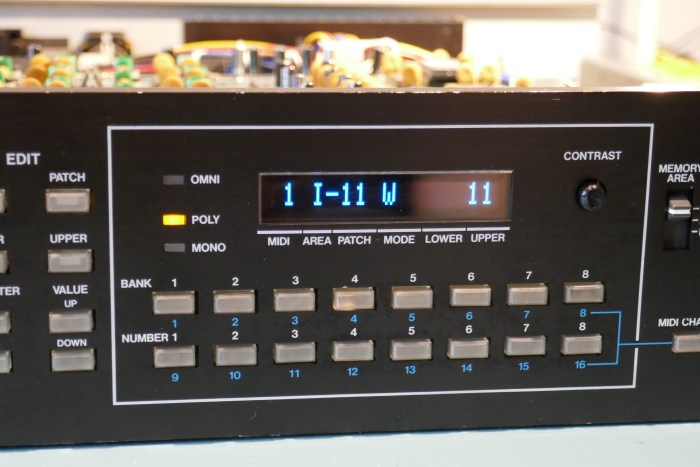

MKS80

12-FinalTest-A

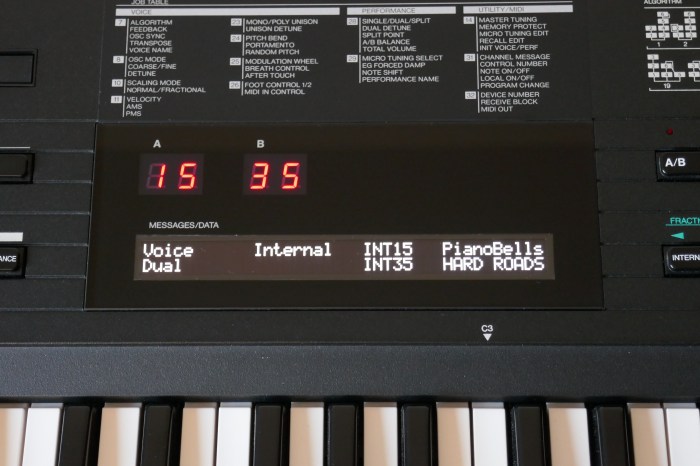

DX7IIFD

DX7IIFD-OLED3

DX5

DX5-OLED-000

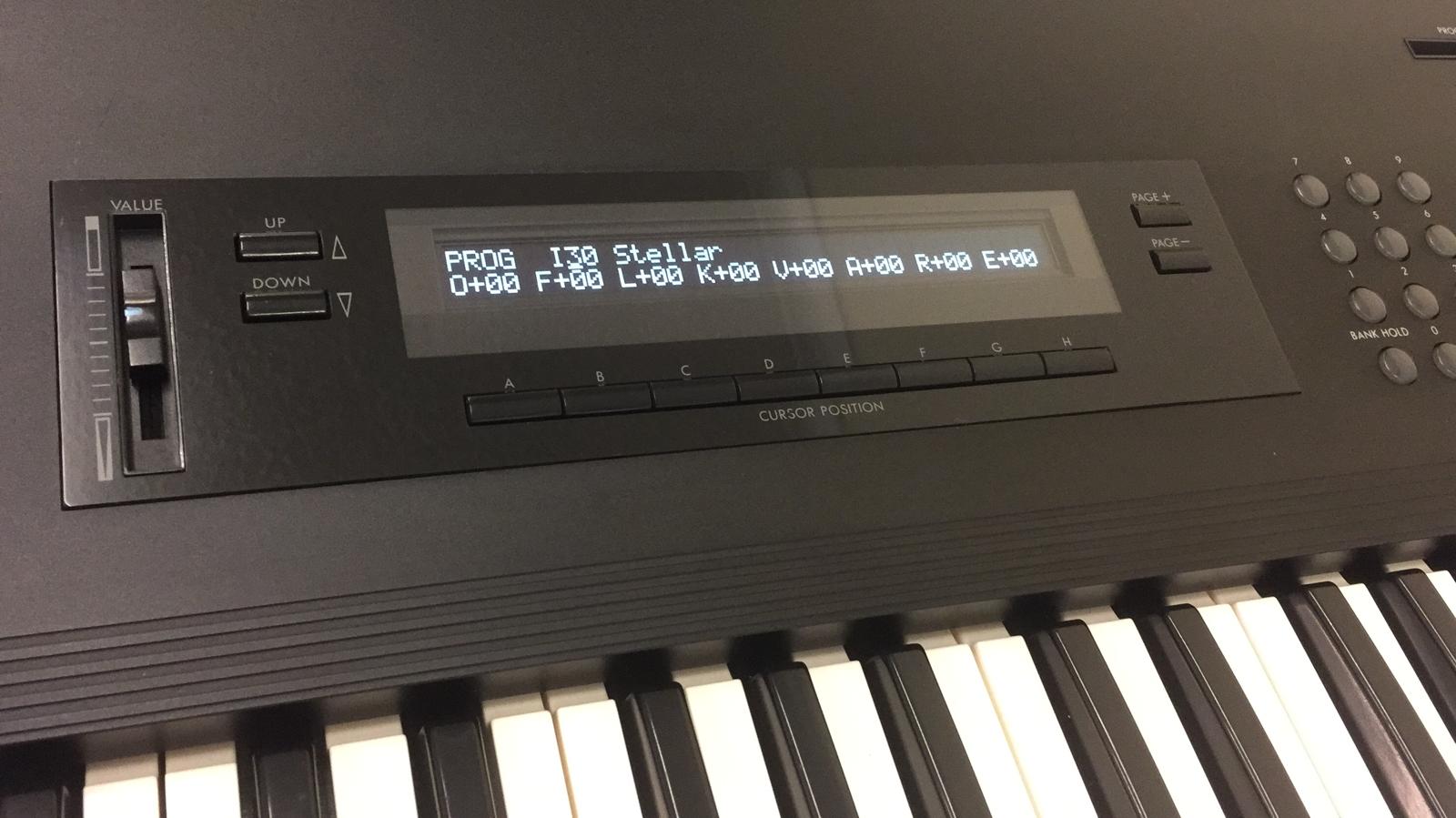

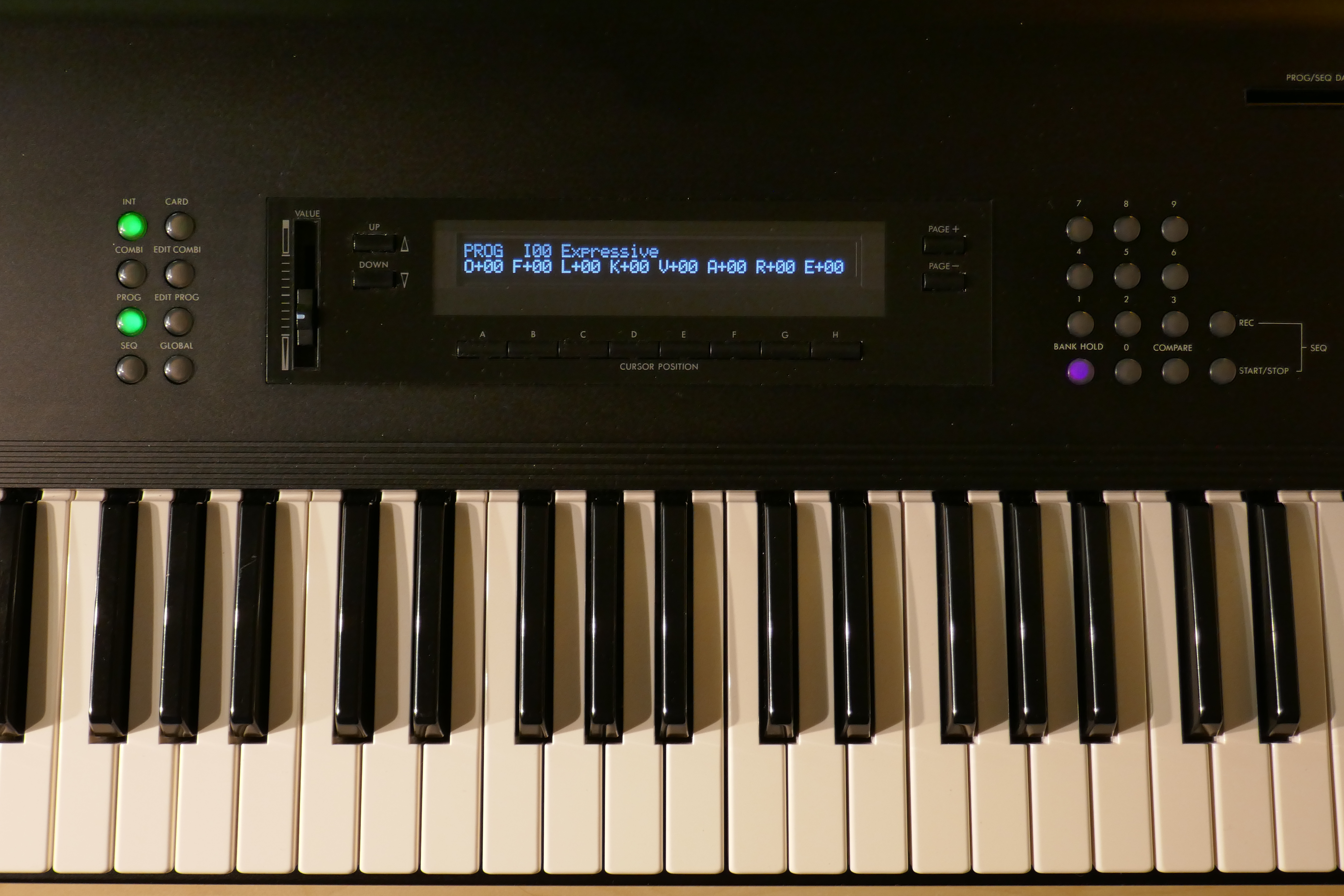

Coming Soon Korg M1

A replacement display kit using the SuperSynthProjects 40×2 OLED. Unfortunately requires modification to the plastic assembly but otherwise a straight forward connection solution using a custom transition PCB.

Details to be published here once first batch of PCBs arrive.

IMG-20201023-WA0018

Super Synth Projects OLED Guide

NewOLED0

See this page showing important information and care points if using our OLED modules.
