Roland JX Display Replacement

2016-01-15 19.08.25

The Roland JX8P, JX10 and MKS70 are fantastic analogue instruments with a unique sound that is still very much in use today. After 30 years, many VFD displays in Roland instruments are starting to fail, either due to FIP transformer failure, segment connection corrosion or the heater filaments in the Vacuum Florescent Tube reaching end of life. When the heater reaches end of life, the filaments can suddenly break after an instrument has been transported and subjected to vibration or shock.

IMG_2243-JX10-Cropped

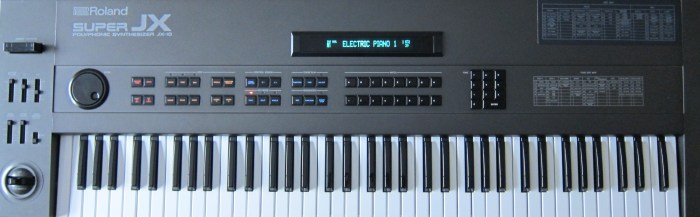

Display failures started with the JX10, losing a 12 voice analogue flagship synthesizer is considered a tragedy by many so this project was started to keep instruments working and delivering their potential. We have since moved onto the JX8P using an OLED display and values are increasing as people realise it’s fabulous sound.

20 (Large)

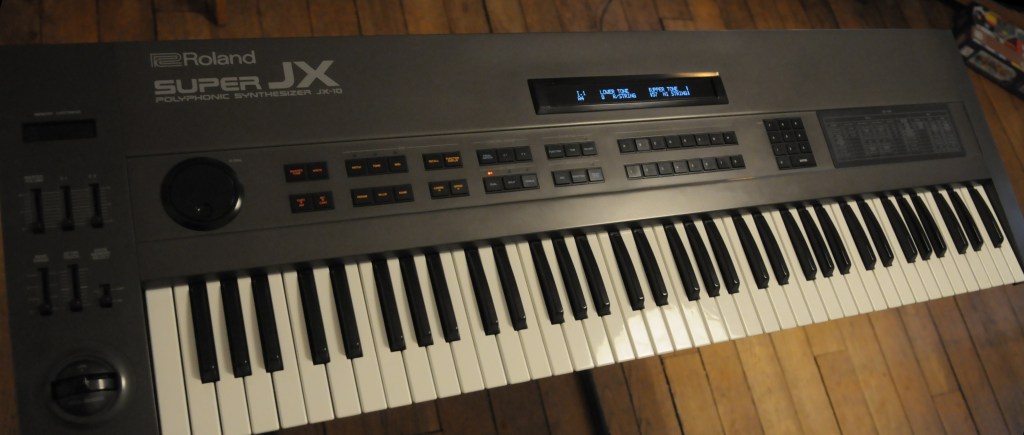

Picture below shows the fabulous JX10 Replacement VFD module.

IMG_1489-cropped

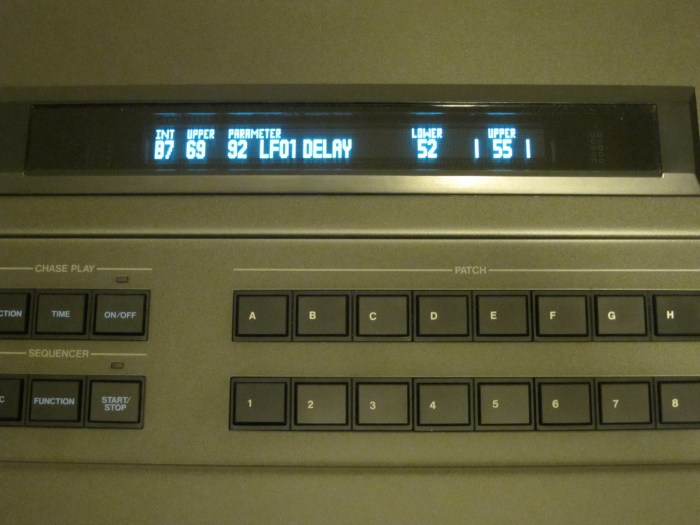

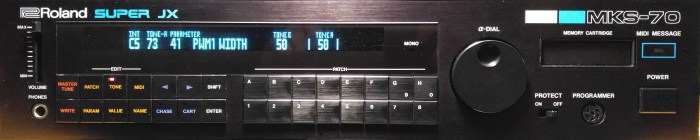

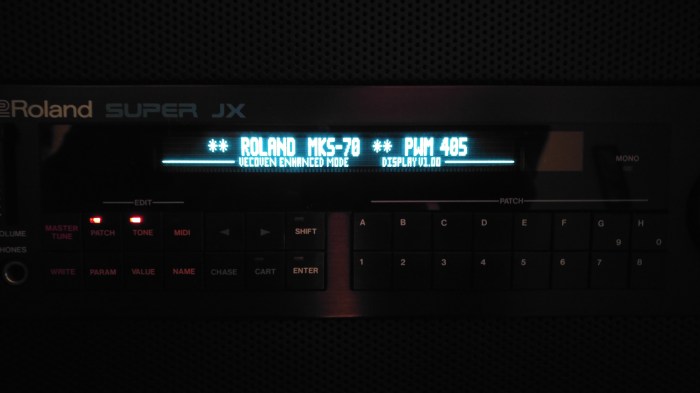

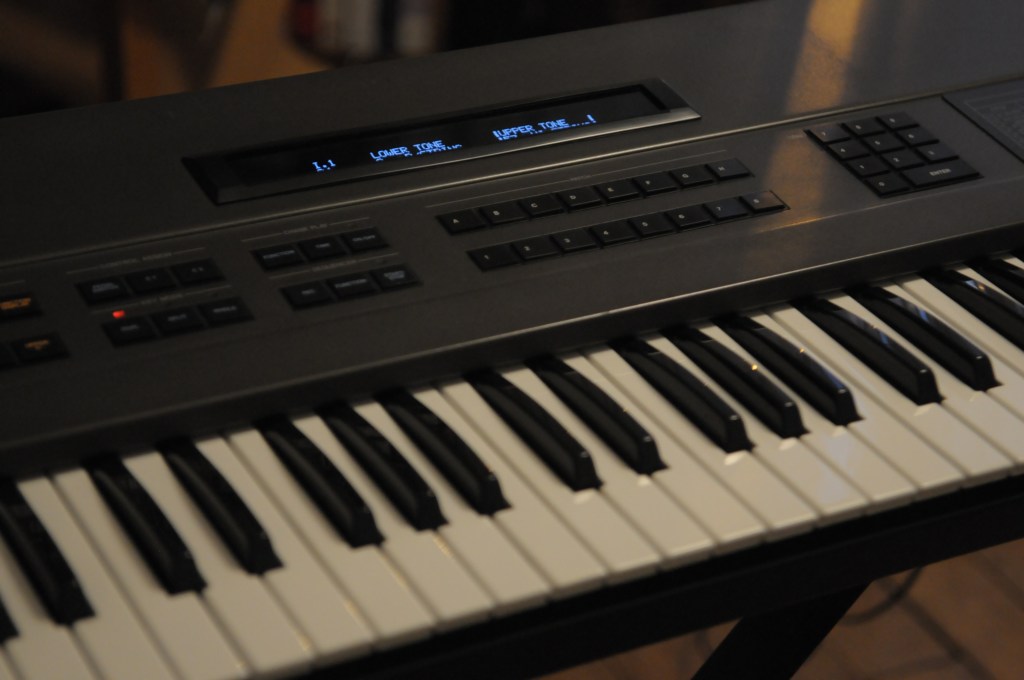

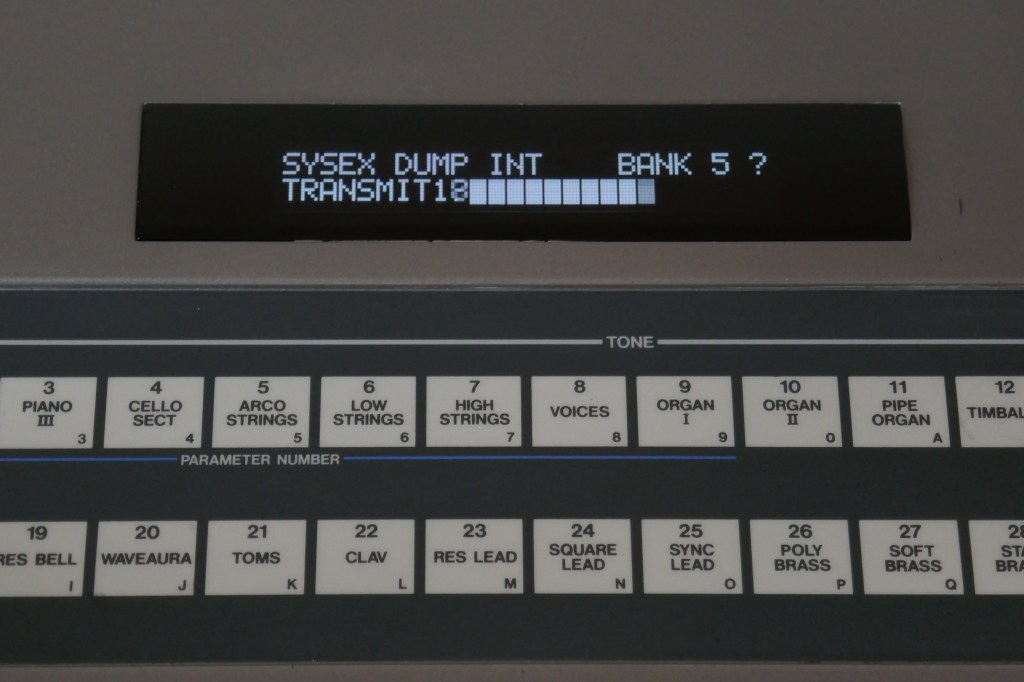

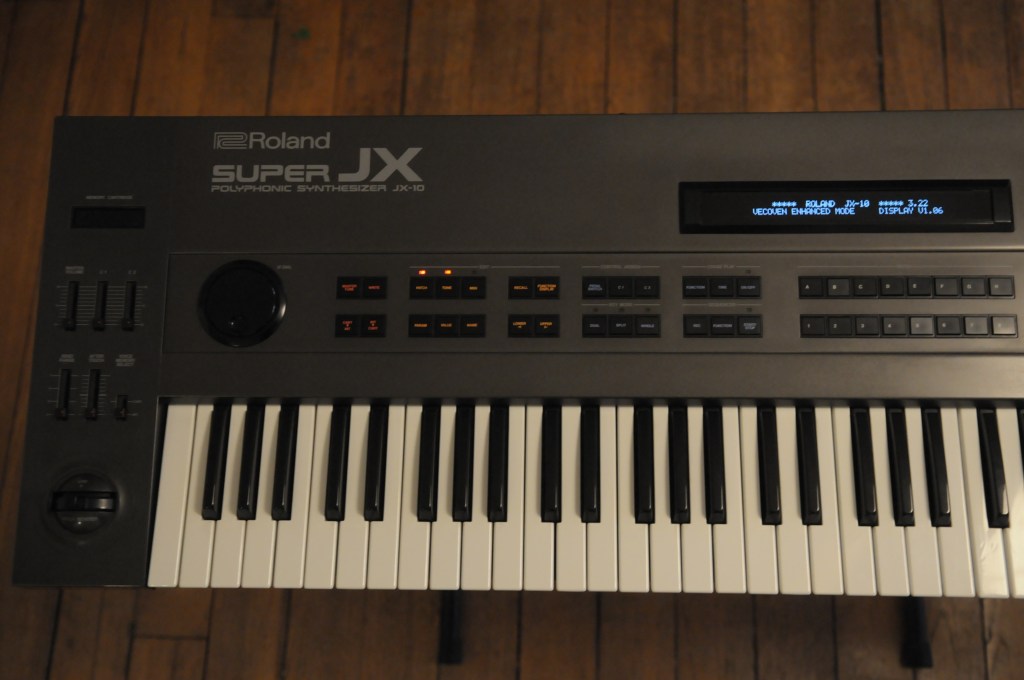

The end result not only replaces the existing display from a functional perspective, but improves usability when using a Frédéric Vecoven OS upgrade. The pictures on this page show the new enhanced arrangement.

2016-01-15 15.59.07

IMG_1479

IMG_1477

For a good look at how the display functions check out this video…

Check out the new Anniversary Edition firmware containing a 14 segment starburst emulation to enhance the retro styling of the instrument: SuperJX Display Anniversary Edition

OLED Versions

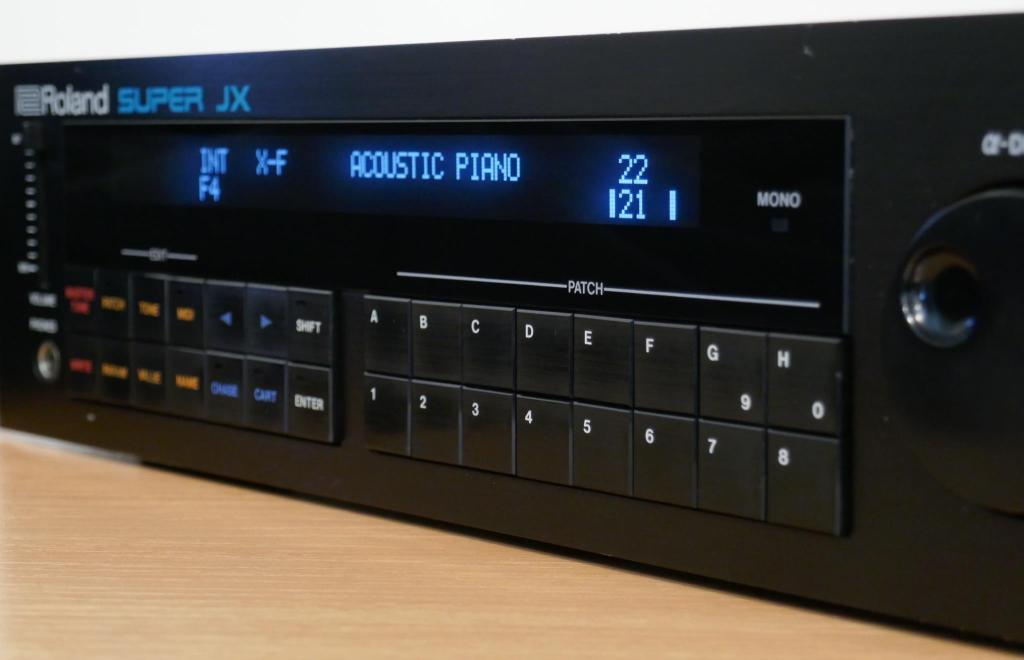

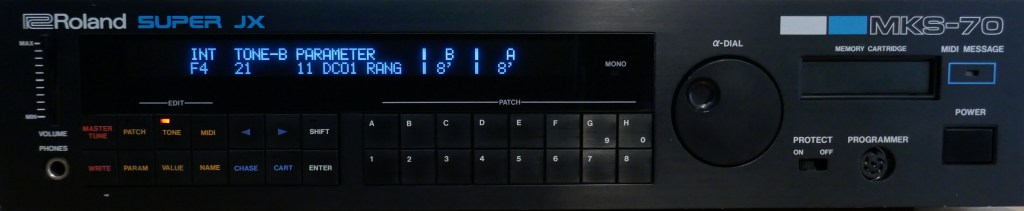

Lower cost versions are available that still presents the same enhanced data as the VFD when running Vecoven OS in the instrument. rather than use a graphic display it uses 40 character by 2 lines to show the information. See here for more information.

For the JX8P, only OLED is available and uses 26 x 2 characters to represent the data in enhanced mode when using Vecoven SuperJX Flash firmware.
