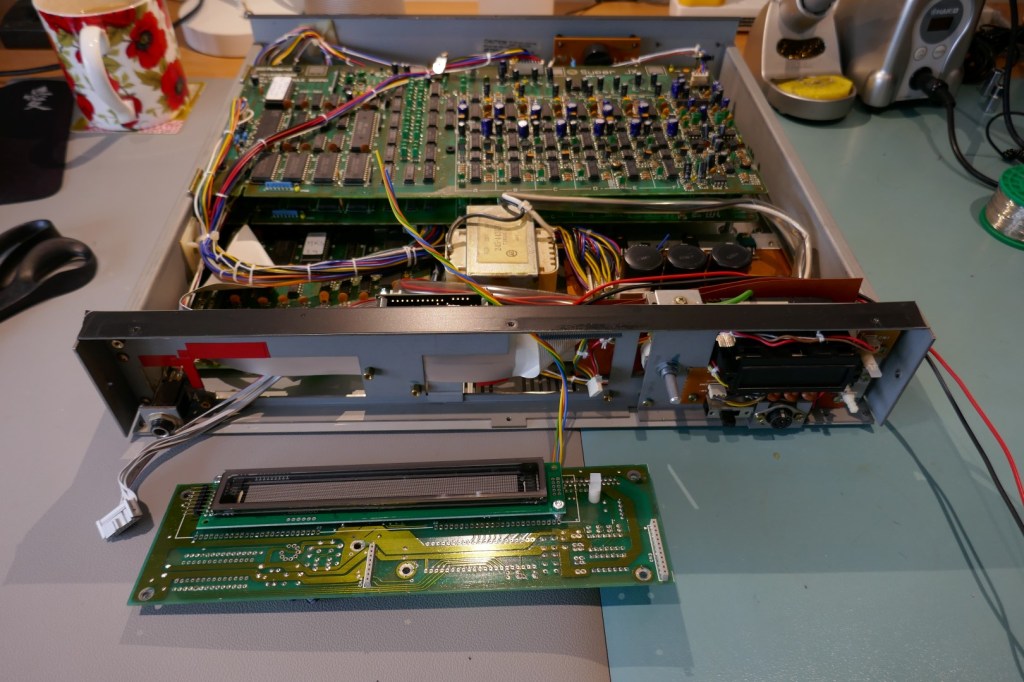

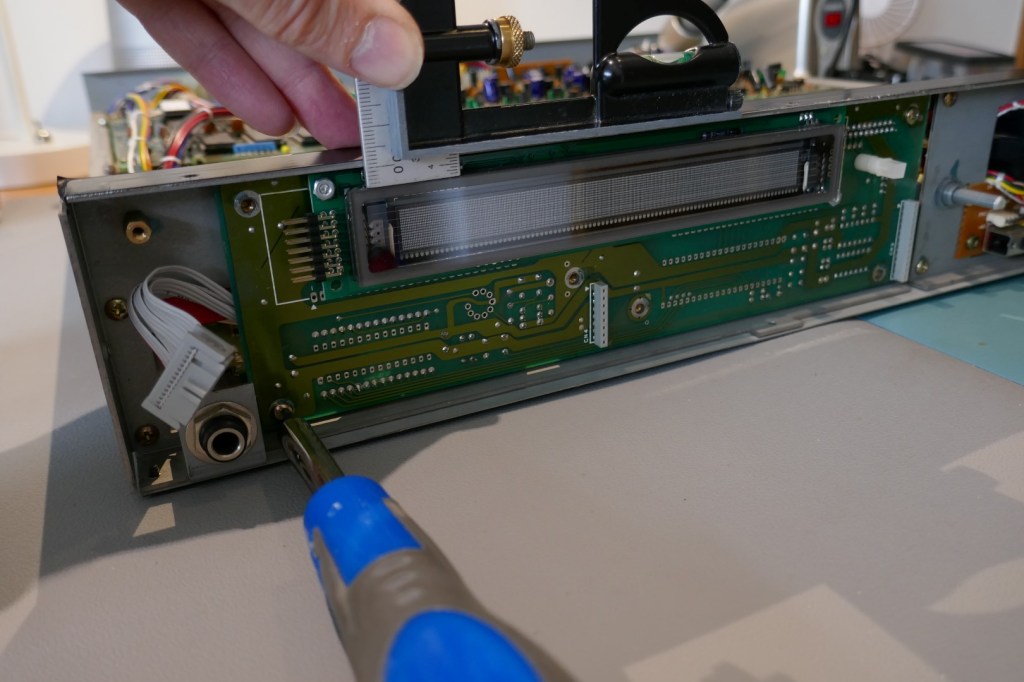

To help installers fit the replacement display, guides are available explaining technical details and recommendations.

Contact us for detailed step by step instructions if you do not have them when installing the display. A link to the correct manual is provided when enquiring or after purchase.

The guides are regularly updated using feedback from installers and where appropriate also includes sections that include contributions and pictures from installers showing any different or important new techniques.

Basic electronics knowledge and good soldering skills are required to fit the kits or modules. For an electronics hobbyist, technician or engineer this project is fun to build and fit.

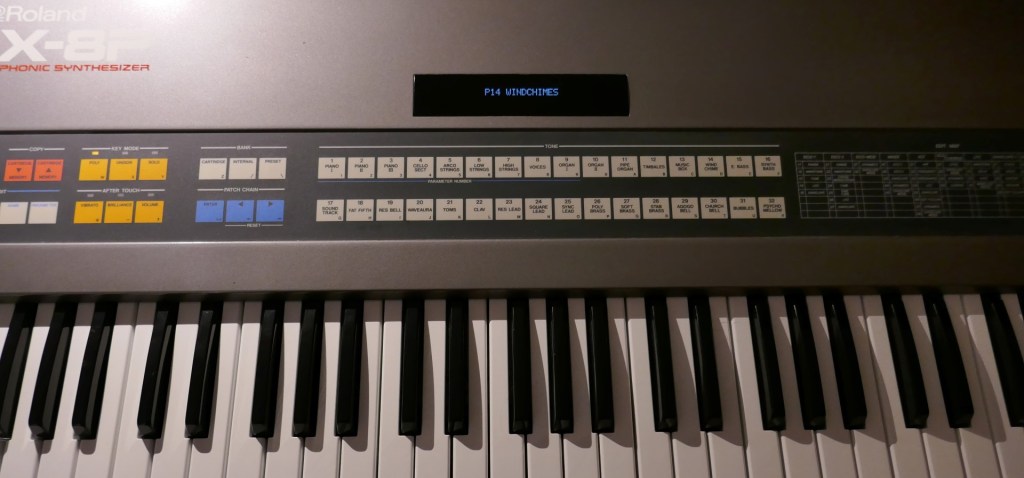

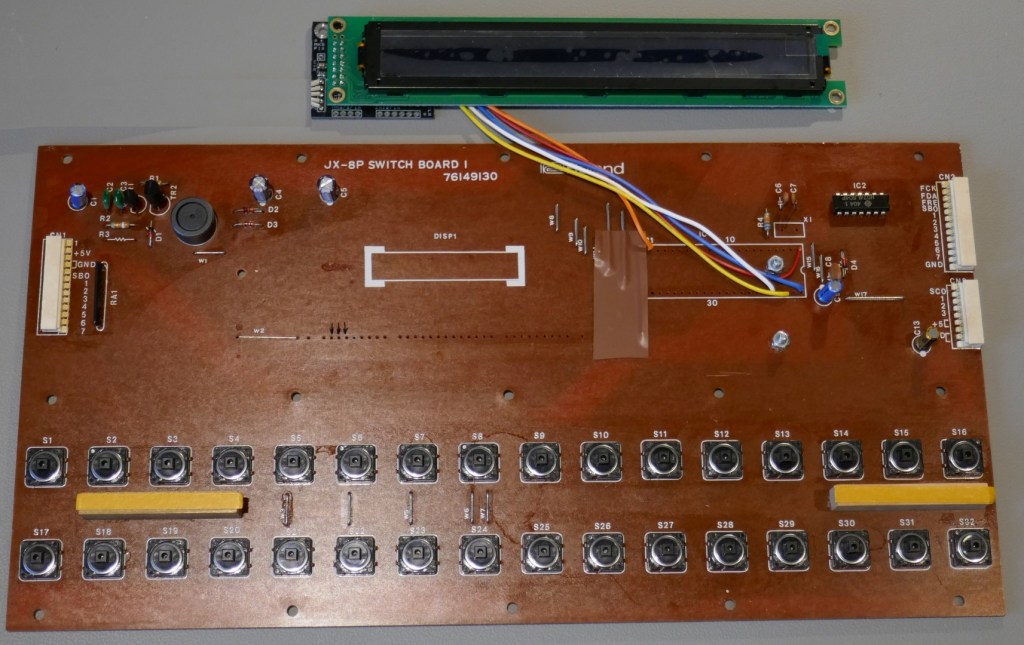

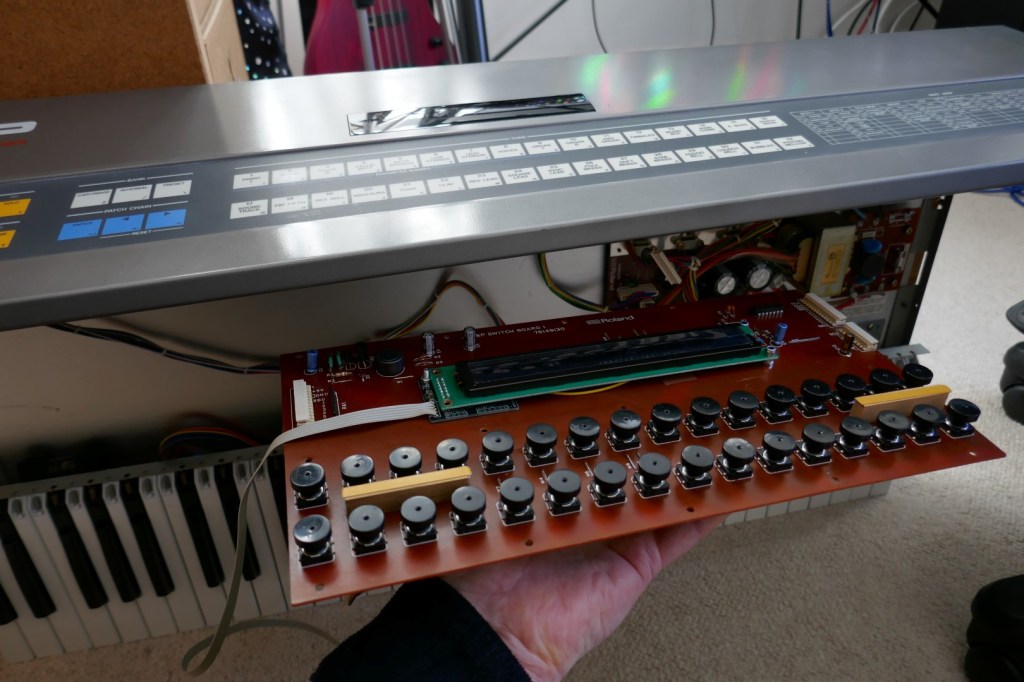

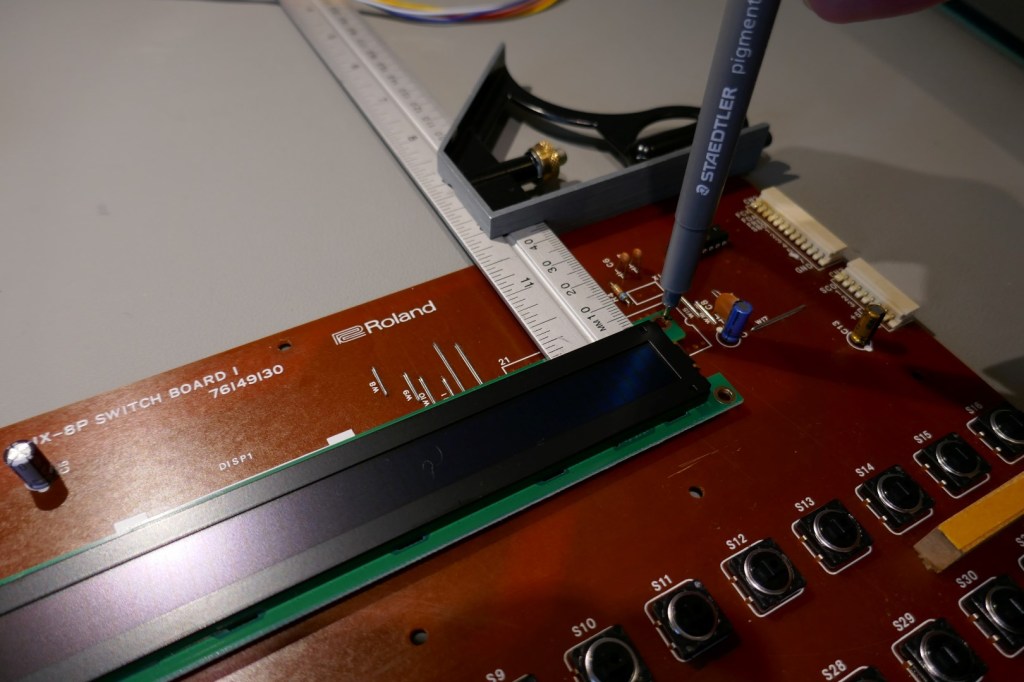

JX8P Visual Summary

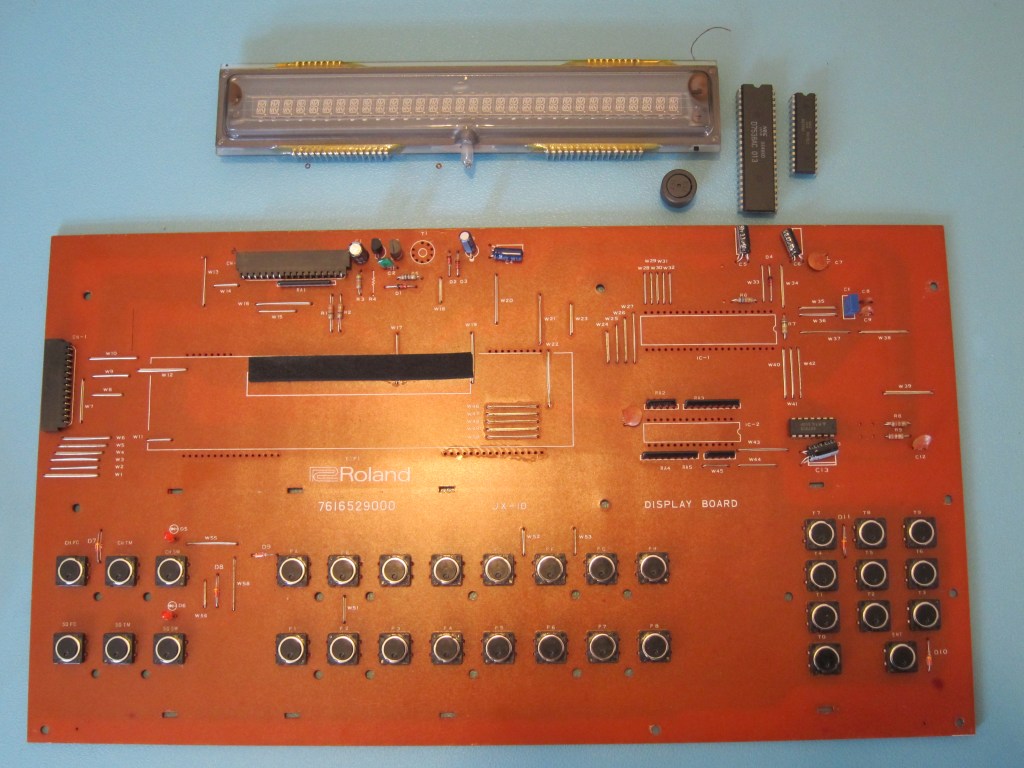

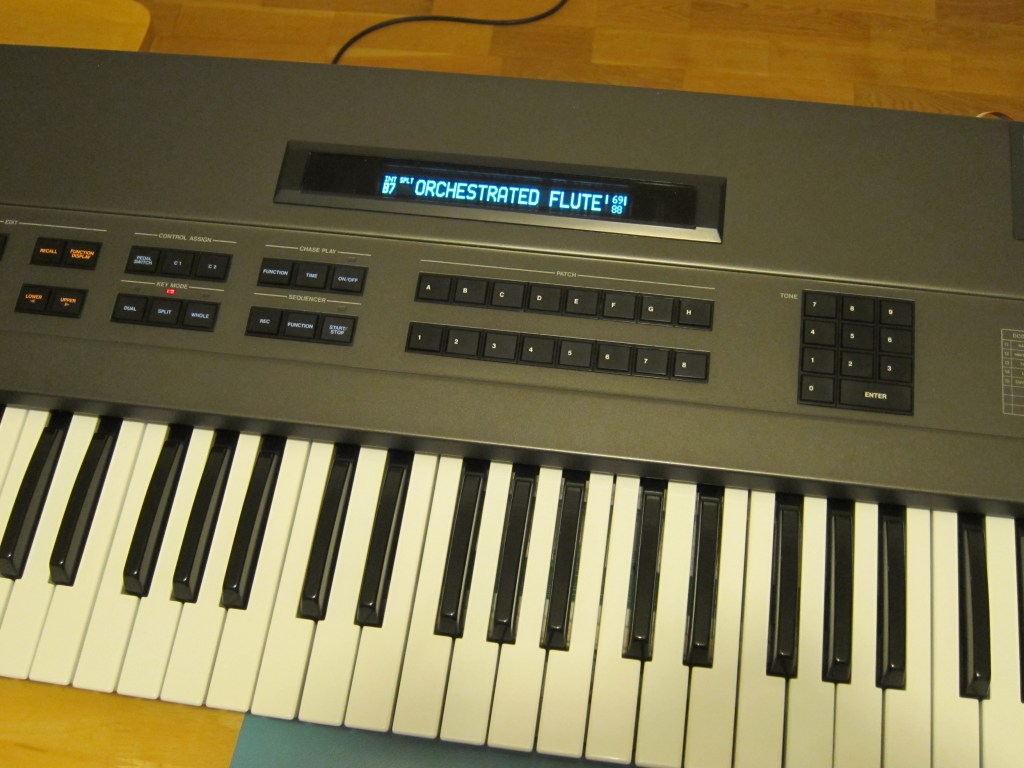

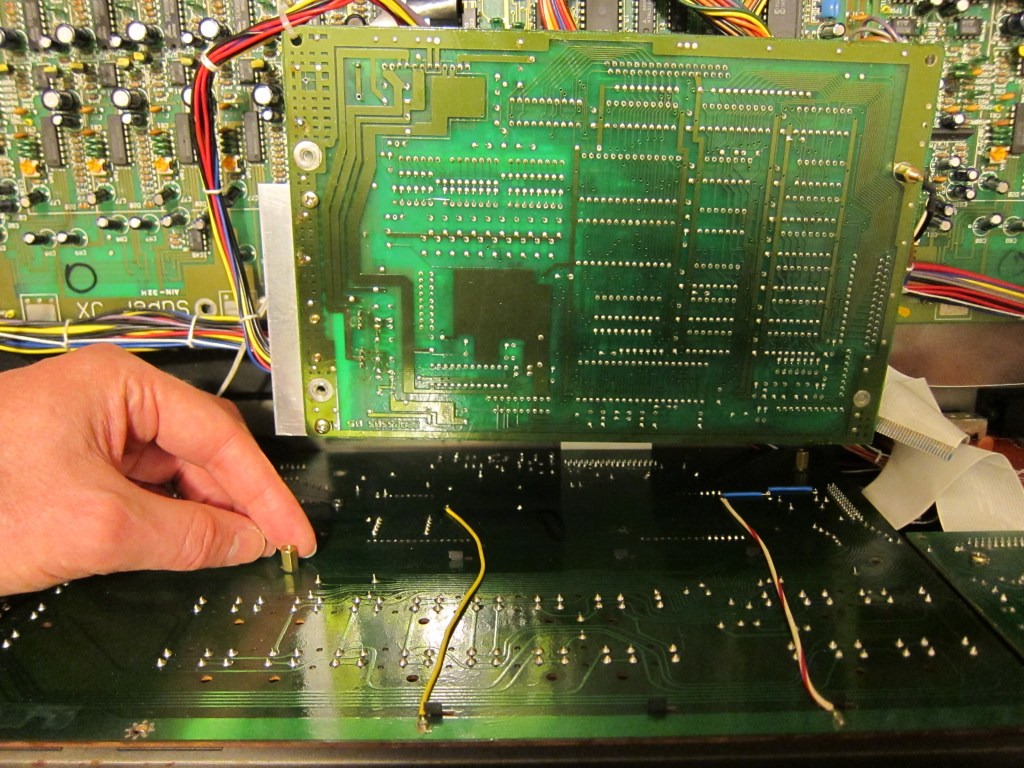

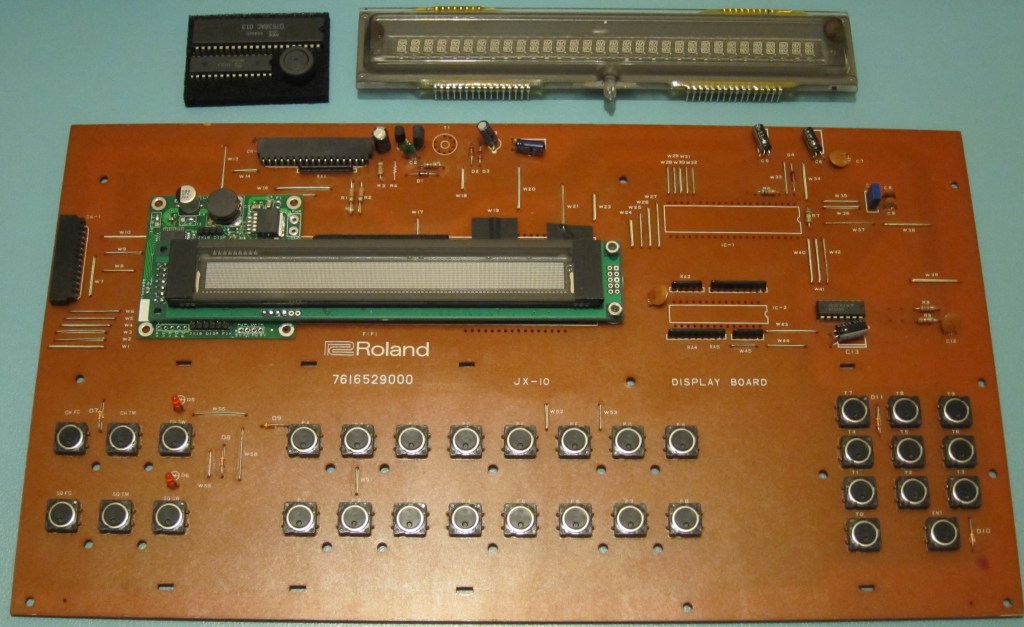

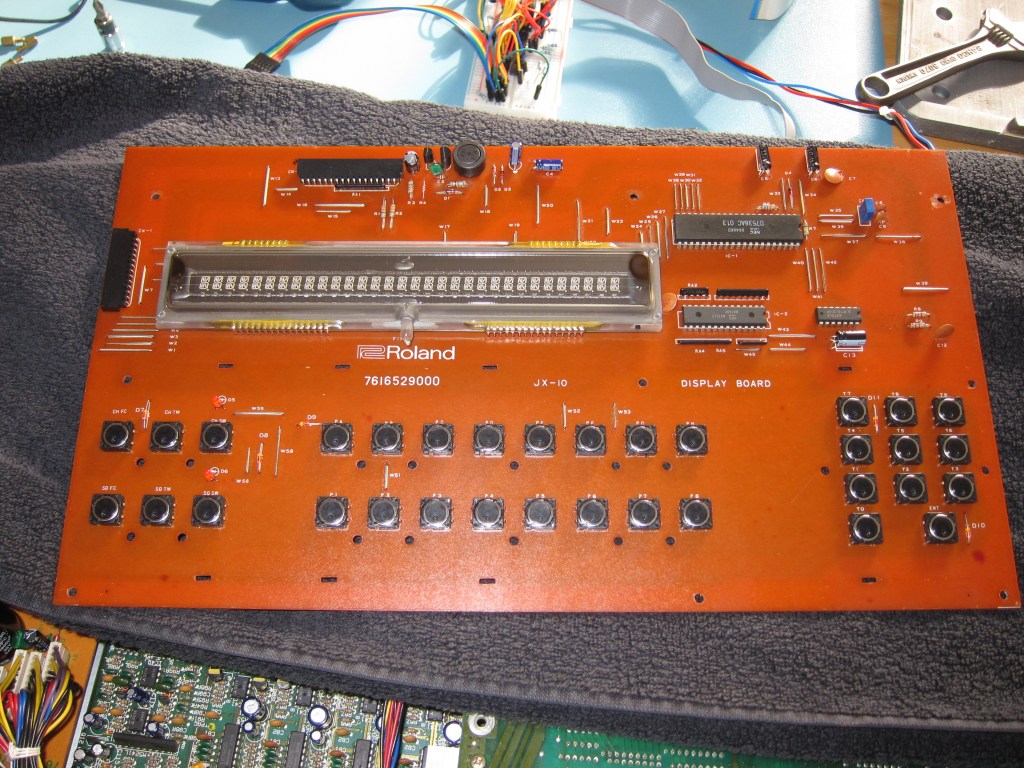

JX10 Visual Summary

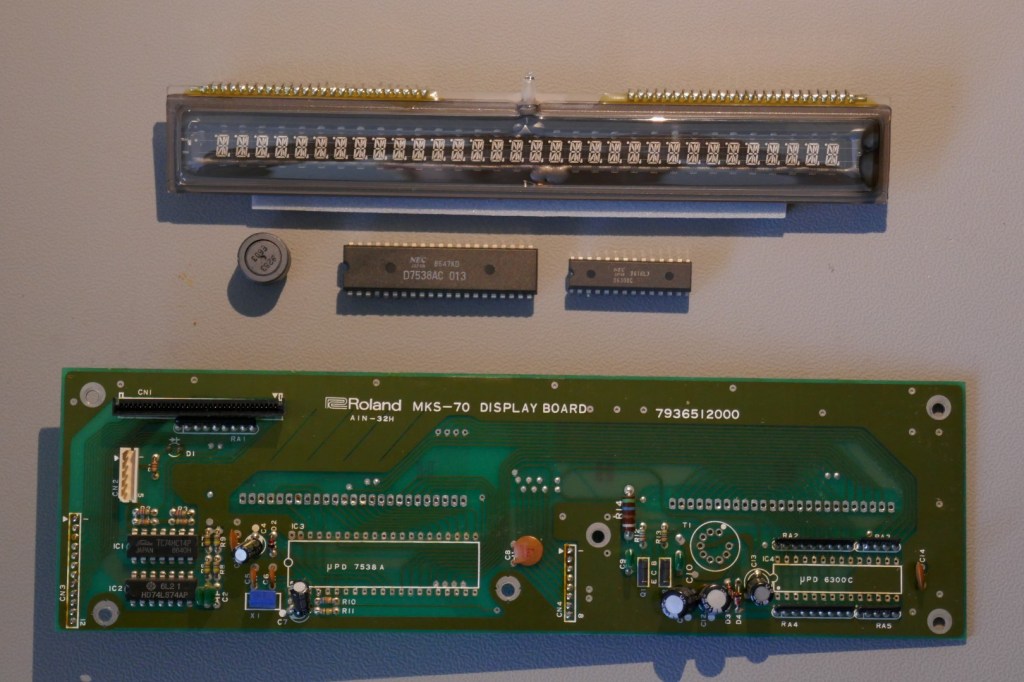

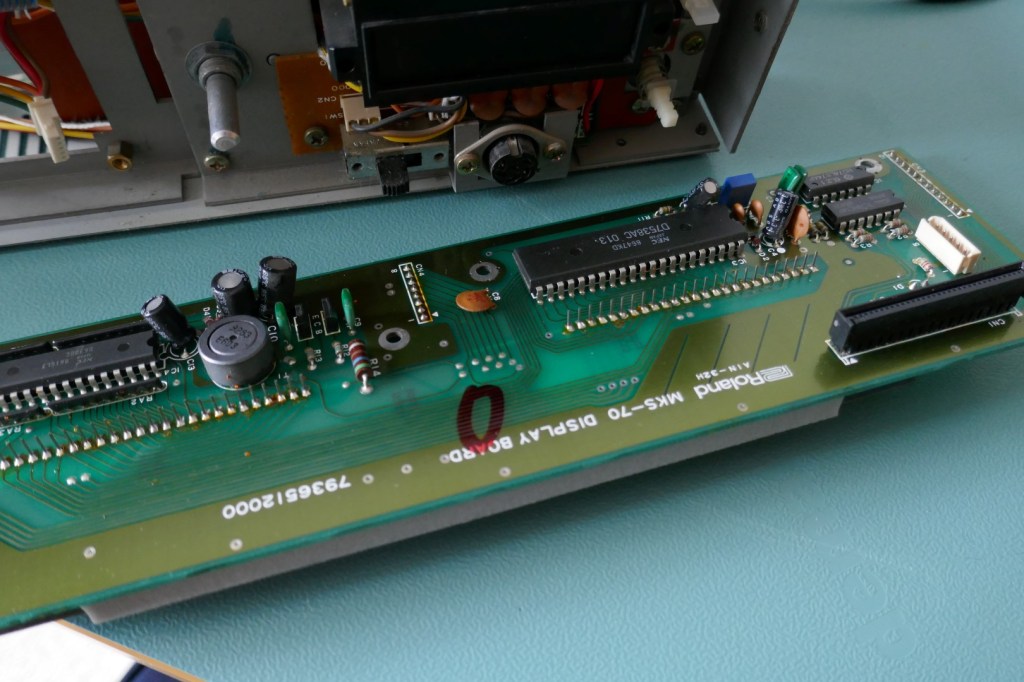

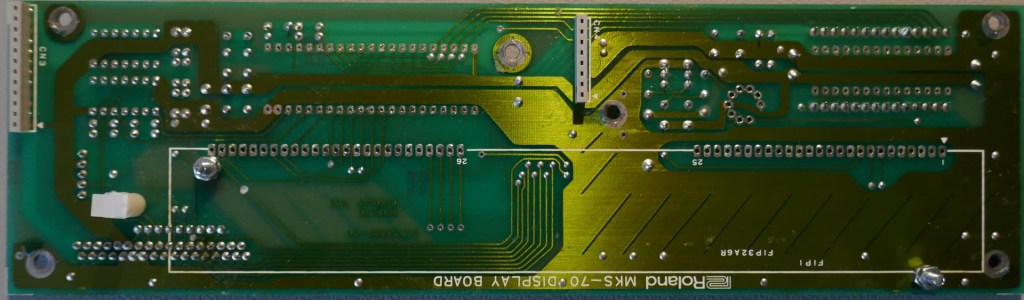

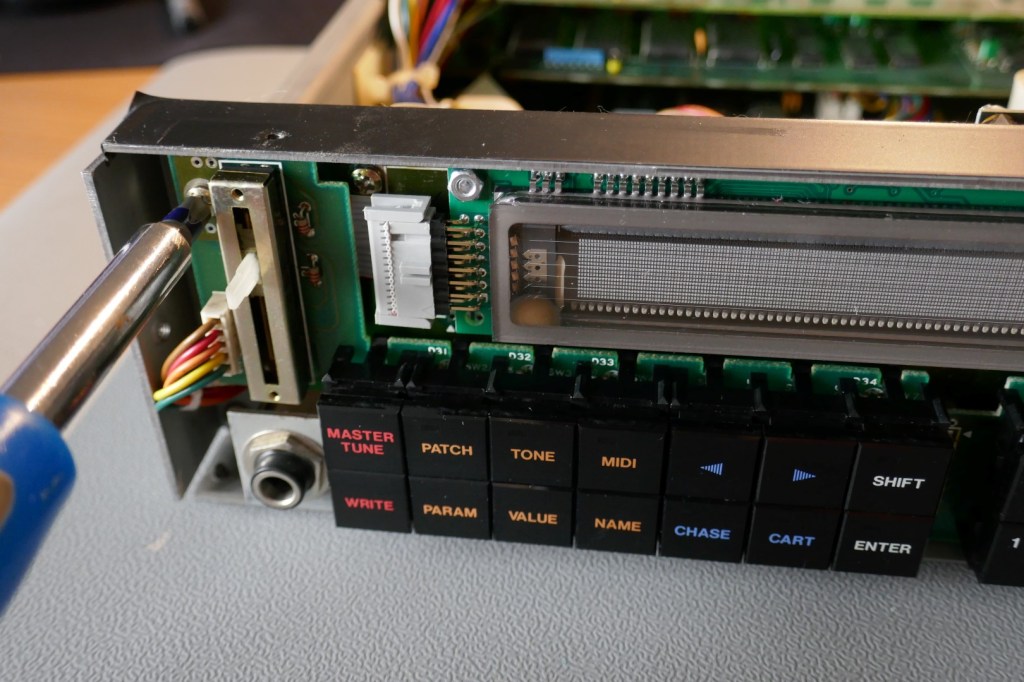

MKS70 Visual Summary

Read More: Graphic VFD
